Compact and mobile Fume Extractor effectively filters smoke, dust and fume resulting from welding or cutting applications.

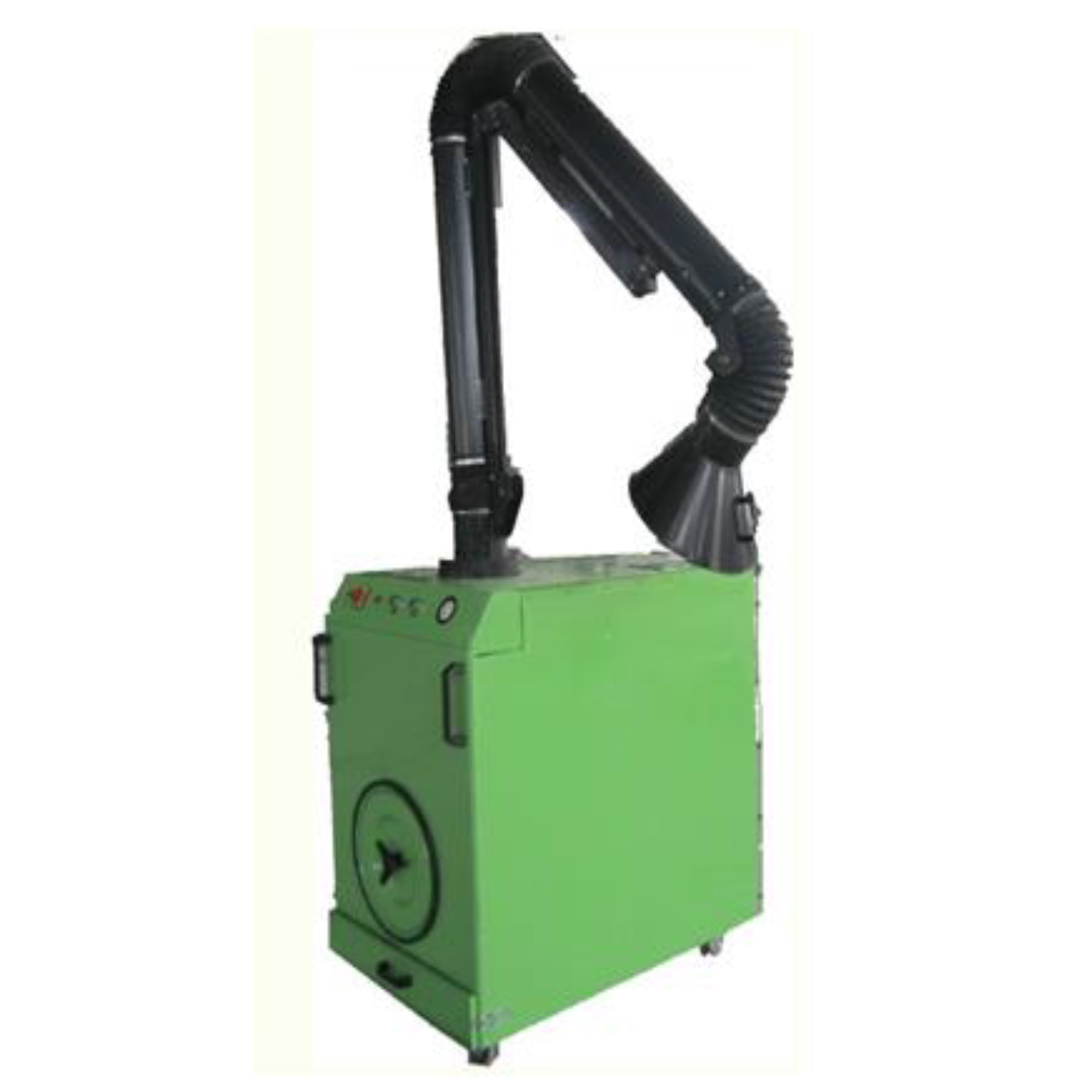

CVX-161 Portable Dust collector
- Built-in pulse filter cleaning system
- Push button located on front of the filter unit, make the operation/control conveniently.
- Nanoweb fiber (Flame Retardant) media filter cartridge
- or PTFE Membrane media filter cartridge provide high filtration efficiency
- "Plug and go" operation
- Fits easily through standard doorway
- Standard filter cartridge, open to open, easy to buy the replacement.
- Large dust drawer design
- Special silencer designed to lower the noise level.
- Filter Cartridge service life: Under normal working environment, it is 12 months.
Specification:
- Nominal airflow: 1500-2000m3/h
- PTFE Membrane or Nano fiber (FR) filter cartridge
- Filter cartridge RH/F3566 RH/Z3566NW(FR)(Open/Open)
- Motor: 2.2KW/3KW
- Extraction arm: 6in. * 6.5ft
- Hood-mounted light with switch
- Fully assembled and wired
- Sound level: 70-75 dBA
- 220V/1P/50Hz 380V/3P/50Hz 415V/3P/50Hz
