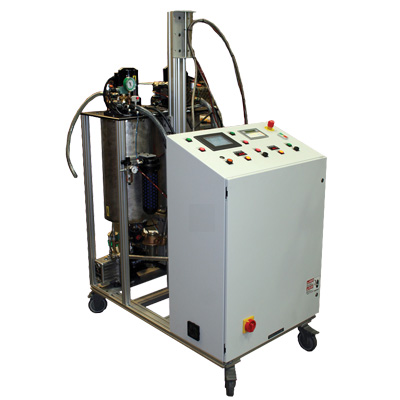

The DCT-2000 Multi Component Dispensing System is a flexible, digitally controlled, cart-mounted meter mix system featuring proprietary positive displacement pump technology ideal for medium to high volume dispensing requirements. It also includes proprietary microprocessor controls with a touch pad user interface, capable of up to 40 stored dispense programs coupled with the lowest industry maintenance requirements make this meter mix system the most reliable cost-effective machine available.

The DCT-2000 is a stand-alone or automation integrated dispenser. This is the most popular form factor for nearly all epoxy, silicone and urethane two-part materials. Compatible with Meter Mix units, NeverEmpty™, pail or drum rams.


Cart-mount form factor
5 gallon stainless tanks
Digital control automation interface with 40 stored programs
Timed and continuous shots
AC motors and drives
Static mixing
Stat-a-Seal dispense head
Low level alarm
Password protection


Mix Ratios1:1 to 20:1
Viscosity1 to 1,000,000 cps
Flow Rate0.025cc to 25cc’s/s (higher flow rates possible)
Shot Size0.02cc to unlimited, continuous flow
Accuracy+/- 2%
Shop Air100 psi
Power Options100 – 240 VAC Single Phase
208 – 240 VAC Single Phase
208 VAC 3 Phase, 50/60 Hz
Dimension24” x 34” x 30”
Weight350 lbs.
