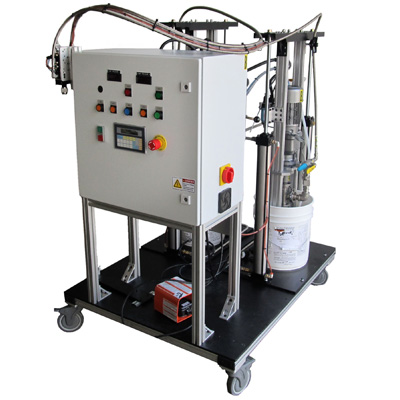

The DCT-2000R Multi-Component Dispensing System is a flexible, digitally controlled cart-mounted meter mix system. This system features proprietary positive displacement pump technology to provide accurate dispensing from pails and drums. Progressive cavity pump technology provides the most efficient dispense possible, with continuous flow, no pulsation and low shear. It includes proprietary microprocessor controls with a touch pad user interface.

Capable of up to 75 stored dispense programs, coupled with the lowest industry maintenance requirements, and makes the DCT-2000R one of the most reliable, cost effective machines available. It is also ideally suited for industrial applications including dispensing high viscosity or paste epoxies, silicones, sealants, adhesives, polymers and polyurethanes. Unlike the DCT-2000, the DCT-2000R provides uninterrupted flow due to having tanks on standby.


Cart-mount form factor
RAM mounted pump configuration
Digital Control Automation Interface with 75 stored programs
Timed and continuous shots
AC motors and drives
Static mixing
Stat-a-Seal dispense head
Low level alarm
Password protection


Mix Ratios1:1 to 20:1
Viscosity50,000 to 1,000,000 cps
Flow Rate1cc to 10cc/s
Shot Size0.25cc to 10,000cc
Accuracy+/- <1%
Shop Air100 psi
Power Options100 – 240 VAC Single Phase
208 – 240 VAC Single Phase
208 VAC 3 Phase, 50/60 Hz
Dimension24” x 34” x 30”
Weight350 lbs.
