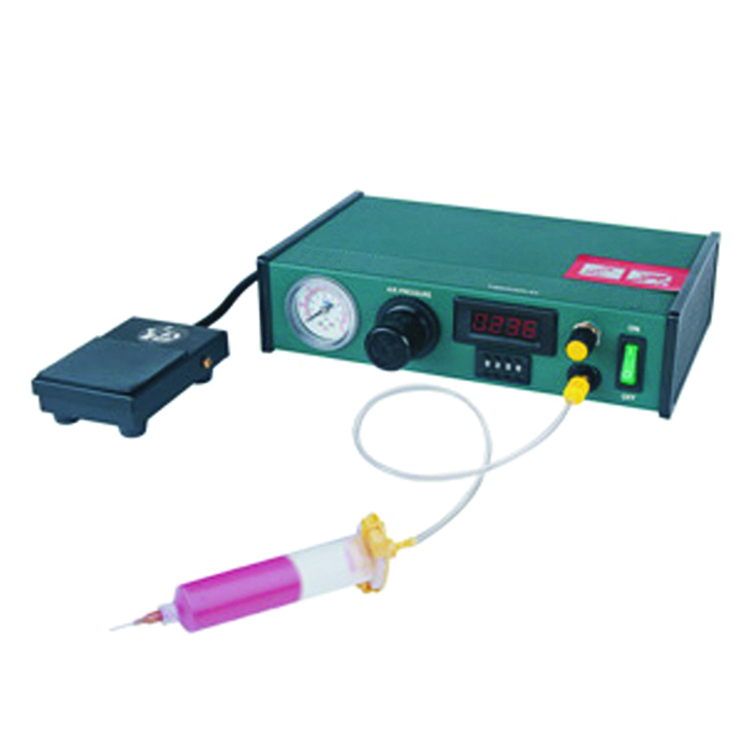

Chemtools DCT-DISP5300 is a micro-processor bench top digital dispenser. The unique teach function and time memory function makes it the ideal tool for precise and repeated dispensing. It's light weight and compact size makes this the ideal bench top dispensing solution for all your gluing, solder paste application and most other materials viscous or not.

Features:
- Ideal for dispensing small ammounts of liquids
- Micro-processor based controller
- Unique teach function
- Vacuum suck back feature for low viscosity liquids
- Can be used with automated XYZ dispensing robots

Dimension:246 x 145 x 65 mm
Weight:2.05 Kilograms
Air Input:70 to 100 PSI
Voltage:220-240 Vac 50Hz
Timer:0.001-99.99 seconds +/- 0.00005 secs
Part Number
DCT-DISP5300
